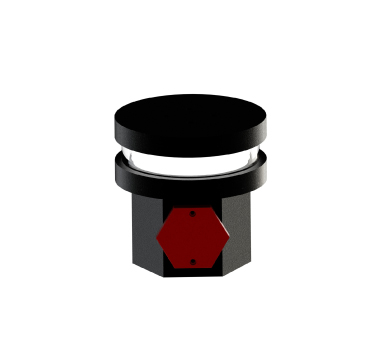

Explosion proof medium intensity Aviation Obstruction Light (“A” TYPE)

IECEX 국제방폭인증
ATEX 유럽방폭인증
INMETRO 브라질 방폭 인증
KCS 안전인증
ISO-9001 품질인증
* Drag the mouse to view the product in 360°


APL-XMA-01
Ex d ⅡC T6 IP66
■Corrosion resistance/Waterproof
■TEMPERED GLASS
■FRESNEL LENS
■HIGH POWER LED
■HOUSING
· Use of LED light source that is highly efficient and with long lifetime
(average of 50,000 hours)
· DAY MODE - 20,000cd/NIGHT MODE - 2,000cd
· Use LED lens for preventing dazzling
· Corrosion-resistant, water-proof
· High brightness and high effectiveness
· Environment-friendly product
· Shock prevention, and no risk of explosion or fire
· Compact design and light weight
· Ease of installation
· Horizontal beam radiation 360˚
· Vertical beam spread 4˚


Weight (kg)
Rated input
Average power
consumption (W)
Color
Luminous intensity (cd) Flashing frequency
(times/minute)
21.8±0.5(kg) DC48V 160(W) White 20,000/2,000(cd) 30(times/minute)
